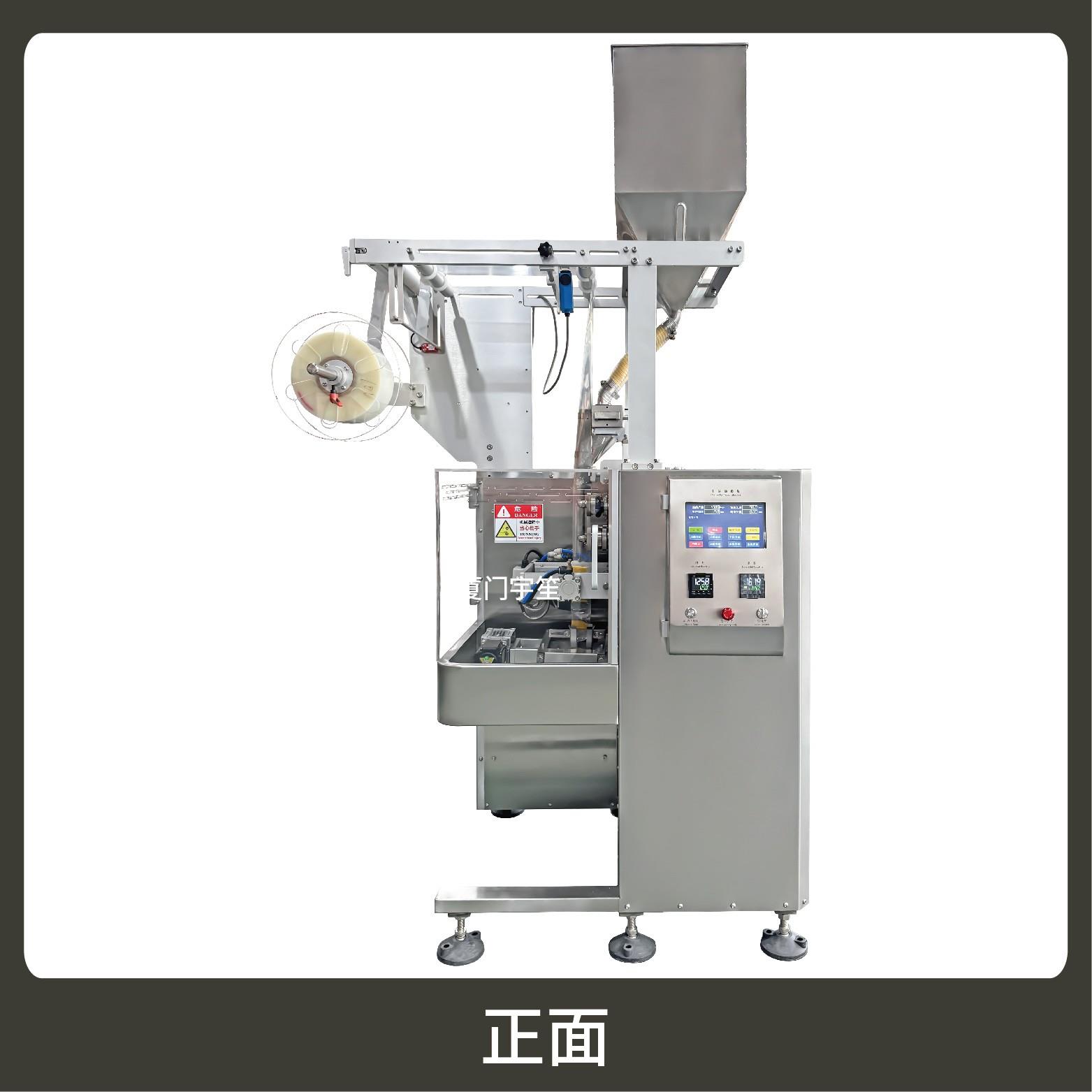

YS-GS180A 連續式高速包裝機 可達150包每分鐘
YS-GS180A 連續式高速包裝機 每分鐘可達150包
特點：
1、適用于各類調味料，沖劑、餌料、香珠等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, instant granules, fishing bait, and fragrant beads.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，速度快，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length, fast speed,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：composite film.
封口方式 Sealing Type
三邊封口 四邊封口 背封封口
Three sides Sealing/ Four sides Sealing/ Back sealing
技術參數：
計量范圍：1-60g具體克重需要咨詢
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 180 mm（可無限長）
Bag Size 寬 ( W ) : 20 - 100 mm
包裝速度：60-180 bags / min（視物料特性而定）
Packing Speed
外型尺寸：1250*1920*850 mm
Dimension ( L * W * H )
整機重量：245kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.35kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于各類調味料，沖劑、餌料、香珠等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, instant granules, fishing bait, and fragrant beads.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，速度快，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length, fast speed,stable performance, easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：composite film.
計量范圍：1-60g具體克重需要咨詢
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 180 mm（可無限長）
Bag Size 寬 ( W ) : 20 - 100 mm
包裝速度：60-180 bags / min（視物料特性而定）
Packing Speed
外型尺寸：1250*1920*850 mm
Dimension ( L * W * H )
整機重量：245kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.35kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于各類調味料，沖劑、餌料、香珠等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, instant granules, fishing bait, and fragrant beads.
